The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to automatic operations.
Lightweight and Easy
to Deploy
IP55 Ingress Protection [1]
10km Max Effective
Operating Radius [2]
Integrated Environmental Monitoring System
Cloud-Based Modeling
FlyTo Tasks
Private Deployment
Third-Party Payload Support [3]
Easy Deployment,
Ready to Go
Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just
two individuals, which makes for flexible installation and reduces installation costs.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. [4] This new vision-based evaluation
markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less. [5]
Rugged, Reliable, Recharged
DJI Dock 2 is designed with safeguarding in mind. With an IP55 dust and water resistance rating, [1] Dock 2 can operate steadily for extended periods even in harsh climates and environments.
DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.
With next-gen image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. Additionally, the landing pad’s new slide-ramp centering design further facilitates precise landing.

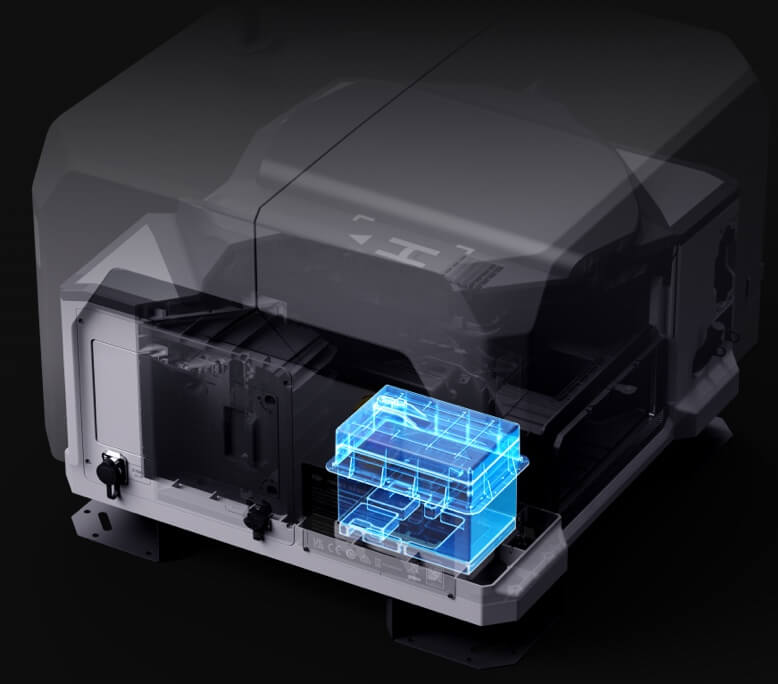

Built-In Backup Battery
In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours [6] with the built-in backup battery, leaving sufficient time for the aircraft to return and land.

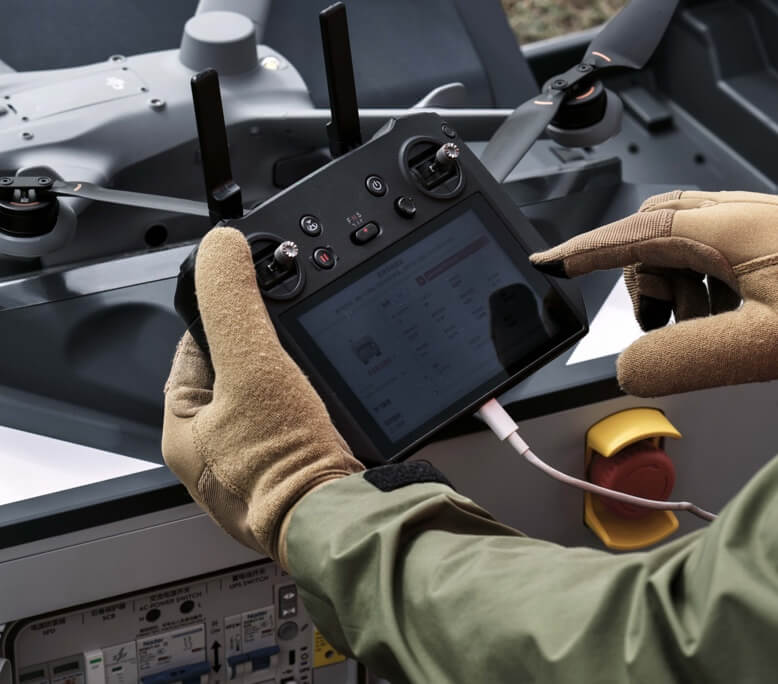

Six-Month Maintenance Interval
With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months, [7] effectively controlling human resource costs.

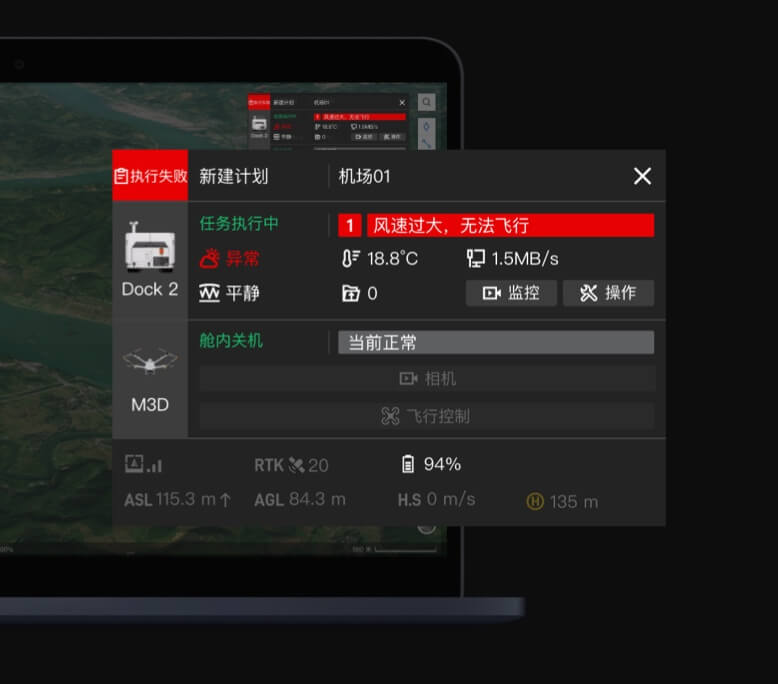

Abnormal Condition Notifications
If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.
High-Performance
Aircraft Models
The all-new DJI Matrice 3D/3TD is specifically designed for DJI
Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.

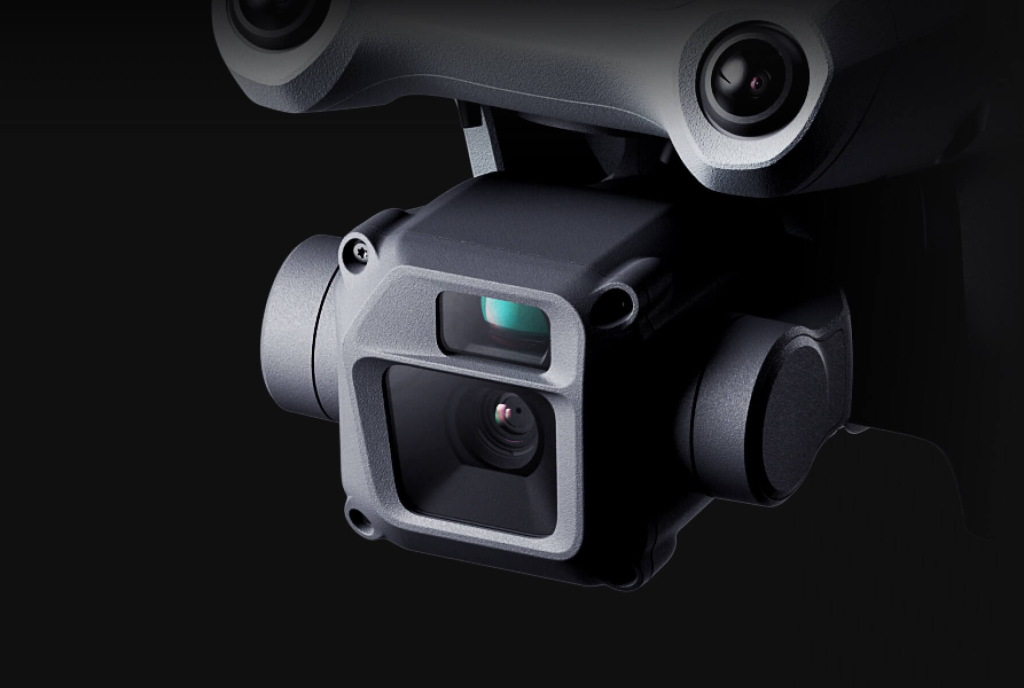

Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
162mm Format Equivalent
12MP Effective Pixels
Wide-Angle Camera
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
24mm Format Equivalent
48MP Effective Pixels
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
162mm Format Equivalent
12MP Effective Pixels
Infrared Camera
40mm Format Equivalent
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps
(With the UHR Infrared Image function enabled, the
aircraft automatically enables or disables UHR
Infrared Image mode according to the ambient light
brightness.)
28x Digital Zoom
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps
(With the UHR Infrared Image function enabled, the
aircraft automatically enables or disables UHR
Infrared Image mode according to the ambient light
brightness.)
28x Digital Zoom
Superior, Comprehensive
Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of
high-standard operations.
high-standard operations.
Dustproof and Waterproof [1]
1P52
Max Flight Time [8]
6-Directional
Obstacle Sensing System [9]
Max Effective Operating Radius [2]
10 km
Integrated RTK Module
±3cm Positioning Accuracy
Battery Cycles [10]
400
Steady Operation,
Uncompromised Efficiency
Quick Takeoff
DJI Dock 2 integrates dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without waiting for the RTK data to converge. It also performs a complete propeller inspection and takeoff in as short a time as 45 seconds, quickly entering operational status. [11]
Quick Charging
DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes [12] for efficient powering for consecutive operations.
Dual-Camera Monitoring
DJI Dock 2 features an internal and an external fisheye camera to achieve real-time display. Close monitoring within and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances, and the aircraft’s takeoff and landing.
Dual-Camera Monitoring
With the DJI Cellular Dongle 2,* the aircraft can connect to 4G networks. In complex operational environments, the 4G network link synergizes with the original O3 transmission link to ensure stable transmission and enhance flight safety.
* Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
Cloud-Based Operation,
Maximum Control
Cloud Mapping
After the aircraft completes its flight task, DJI FlightHub 2 generates
high-precision 3D models based on the collected flight data,
authentically restoring the operating environment. These models
can be annotated, measured, and downloaded.
high-precision 3D models based on the collected flight data,
authentically restoring the operating environment. These models
can be annotated, measured, and downloaded.
Flight Route Editor
Utilizing high-precision 3D models, operators can conduct visual
flight route editing from a first-person perspective and preview
simulated imaging results. This facilitates intuitive and efficient
operations and enhances flight route planning and accuracy.
flight route editing from a first-person perspective and preview
simulated imaging results. This facilitates intuitive and efficient
operations and enhances flight route planning and accuracy.
AI Spot-Check
Frame a specific area in the 3D model, and the aircraft will automatically compare the area to be captured with the framed
area in subsequent automated operations. This actively adjusts the camera’s angle to ensure accurate capture of the same area across multiple flights.
area in subsequent automated operations. This actively adjusts the camera’s angle to ensure accurate capture of the same area across multiple flights.
FlyTo Tasks
DJI FlightHub 2’s FlyTo tasks utilize high-precision 3D models to automatically plan the optimal flight route. Before an urgent task,
the operator only needs to click on the subject, and the aircraft will
fly to the destination via an efficient and safe route.
the operator only needs to click on the subject, and the aircraft will
fly to the destination via an efficient and safe route.
Live Flight Controls
Based on DJI FlightHub 2 or a third-party cloud platform, even if DJI Dock 2 is deployed in a remote region, the operator can still control the flight and gimbal angle via keyboard and mouse.
Obstacle Bypass
When performing automatic flight tasks, the aircraft utilizes omnidirectional obstacle sensing and automatic obstacle bypass functions to enhance the success rate of flight tasks.
