Zenmuse H30 Series

Buy Now
Flagship All-Weather Multi-Sensor Payload‌

Zenmuse H30 Series

Unparalleled Vision, Day or Night

Watch Video

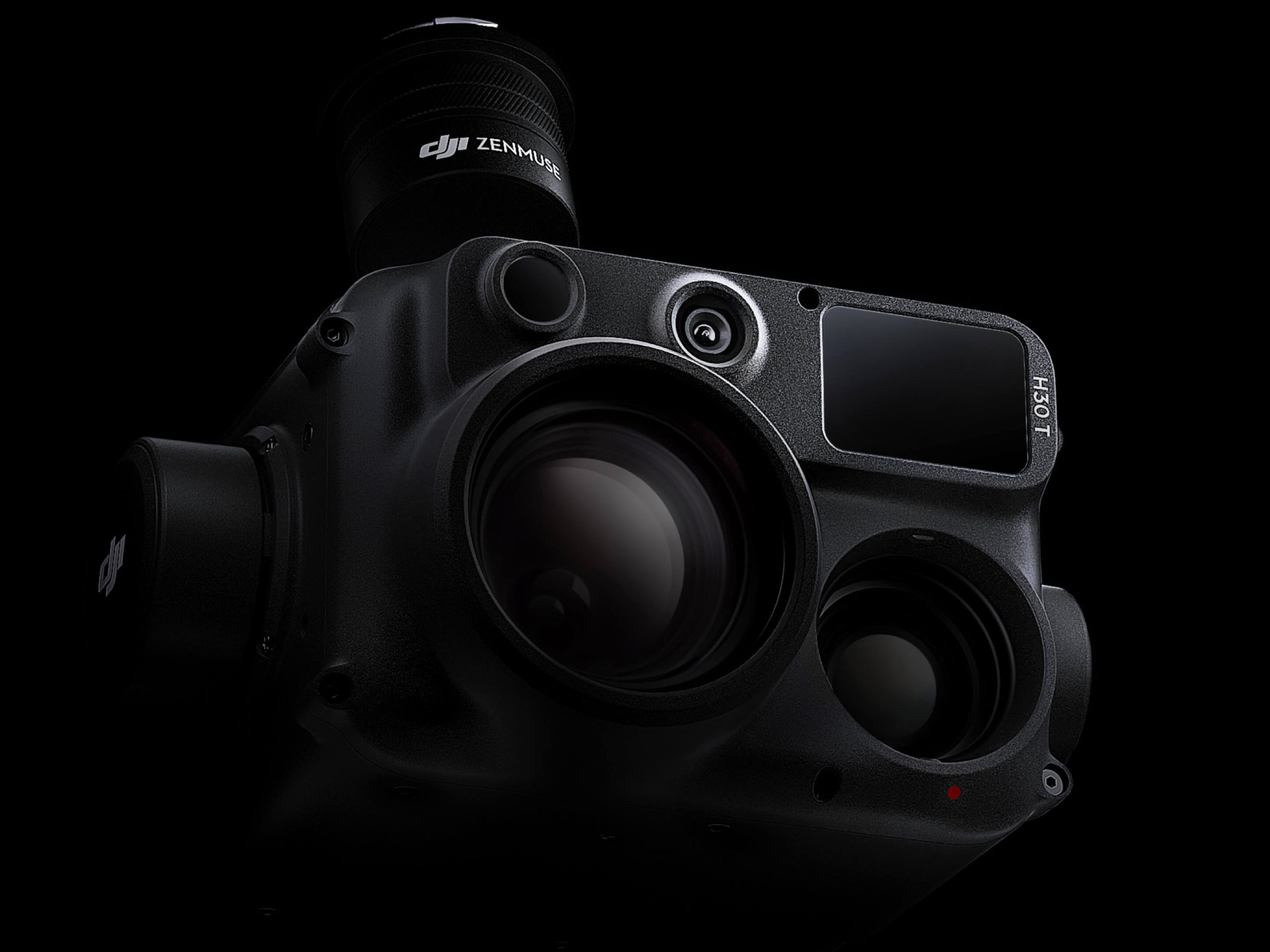

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a
wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an
NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception
and imaging standards, transcending the limitations of day and night vision. This makes it
effortlessly suitable for a variety of operations, including public safety, energy inspection,
water conservation, and forestry.

Versatile Performance,
Day and Night

Laser Range Finder
- Wavelength: 850 nm
- FOV: 4.6±0.6° (Round)
- Safety Rating:
- Illumination Range: Approx. 8m diameter circle at 100m distance
Zoom Camera
- Up to 34× Optical Zoom‌ and 400× Digital Zoom
- 40MP 1/1.8-inch CMOS Sensor
- Video Resolution: Max 3840×2160@30fps
Infrared Thermal Camera (H30T only)
- Equivalent Focal Length: 52mm, DFOV: 45.2°
- Uncooled VOx Microbolometer
- Photo Resolution: 1280×1024
- Video Resolution: 1280×1024@30fps
- Temperature Measurement Range from -20° to 1600° C (-4° to
Previous slide
Next slide
  • Zoom Camera
  • Wide-Angle Camera
  • Laser Range Finder
  • Infrared Thermal Camera (H30T only)
  • NIR Auxiliary Light

Further and Clearer ‌
Vision

More Powerful
Infrared
Performance

Smarter Multi-Scenario
Operations

Superior Environmental Adaptability

Further and Clearer ‌
Vision

Further and Clearer Vision

Up to 34× Optical Zoom‌
and 400× Digital Zoom

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, [2] it not only observes subjects at greater distances but also captures more details.

More Stable Imagery
from the Zoom Camera

With DJI’s latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

Max 3000m Laser Range Finder

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, [3] accurately capturing the position information of subjects within a range from 3 m to 3000 m, [4] including linear distance from the camera, altitude, and GPS coordinates.

Enhanced Night Vision

Supports Full-Color Night Vision

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

Supports Black and White Night Vision and NIR Illumination

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. [5] It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for night safety observation and search-and-rescue operations.

More Powerful Infrared
Performance

1280×1024 Infrared Resolution

The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, [6] with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, [7] ensuring the infrared images remain clear.

High-Res Mode for Precise Observation

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, [8] which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Visual and IR Cameras
Simultaneous Zoom

The Zenmuse H30T’s zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

With the installation of an infrared density filter, [9] the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. [10] This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

Smarter Multi-Scenario Operations

Smart Capture for Improved
Imaging

Electronic Dehazing

In conditions such as smog or high
atmospheric humidity, the Zenmuse H30
Series zoom camera employs a new
Electronic Dehazing function [11] to enhance
image clarity. It offers low and high
dehazing levels to suit different operational
environments and requirements.

Superior Environmental
Adaptability

IP54
Ingress Protection

With an IP54 dust and water resistance rating, [12] the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.

-20° to 50° C (-4° to 122° F)
Operating Temperature

The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.

More Reliable Information Sync
and Retention

Supports Pre-Recording

Media and Transmission
Encryption with One-
click Log Clearance

All cameras of the Zenmuse H30 Series,
including the zoom, wide-angle, and
infrared thermal cameras, support
pre-recording. They can retain footage
from 10, 15, or 30 seconds before the
formal recording starts, ensuring a
more complete record and capturing
key information that may otherwise
be quickly lost.

Application Scenarios

With DJI Enterprise flight platforms, the Zenmuse H30 Series is suited for applications in a
range of industries, such as public safety, electricity, oil and gas, water conservation,
and forestry.

Public Safety

Learn More

Electricity

Learn More

Oil and Natural Gas

Learn More

Water Conservation

Forestry
