Land Survey
Quickly generate accurate 2D and 3D models. Cover more ground, improve
safety, and reduce costs.
safety, and reduce costs.
Painpoints
- Field work is slow and inefficient using traditional surveying methods, increasing operational costs and on-site time requirements.
- Traditional Surveying outputs lack visual references or low resolution, leading to a limited perspective of the landscape.
- Collecting usable data in complex and remote areas is difficult and hazardous.
- Frequently tracking landscape changes is inefficient with traditional methods.
Advantages
- Significantly reduce costs and save time by using affordable UAS solutions that automate data collection and processing.
- Visualize results with accurate, high-resolution maps, Point Clouds, and 3D models.
- Reduce personnel risk in hazardous environments with switly aerial data collection.
- Keep digital records that can be easily used for regular land cover comparisons, so teams can more easily and dynamically monitor changes.
Solution
Portable Drone Surveying & Mapping Solution
Full-Frame High-Performance Surveying and Mapping Solution
LiDAR Mapping Solution
Portable Drone Surveying & Mapping Solution
The DJI Mavic 3E is a portable surveying and mapping drone suitable for single-pilot operations. Paired with DJI Terra, it can generate accurate 2D and 3D models with significant reduction on the ground control points.
- Portable solution, easy to carry and deploy.
- Centimeter-level data thanks to its mechanical shutter and RTK capability.
- Field-work efficiency—covers 2 km² per flight, delivering a 5cm GSD.
- Real-Time Terrain Follow feature to ensure high-quality data capture in challenging and variable terrains.
Workflow
- Data Collection: Plan a 2D, Linear Flight, or Smart Oblique Mission based on the actual landscape situation for regular orthomosaic images or oblique image data collection. Enable Real-Time Terrain Follow feature.
- Data Processing: Import to DJI Terra to process for DOM, DSM, Point Cloud, and 3D models.
- Data Analysis: Import DJI Terra outputs to preferred third-party software for further analysis.
Full-Frame High-Performance Surveying and Mapping Solution
Matrice 350 RTK paired with the Zenmuse P1 full-frame sensor and its Smart Oblique Capture feature takes aerial surveying efficiency and accuracy to a whole new level. Combine with DJI Terra for an efficient and integrated UAS surveying and mapping solution.
- Generate accurate centimeter-level deliverables, significantly reducing ground control points.
- Field-work efficiency—covers 3 km² per flight, delivering a 5cm GSD.
- Reliable multi-purposed drone platform.
- Zenmuse P1 has a 45MP, full-frame sensor to ensure high-quality data collection.
Drone Platform
Matrice 350 RTK
Weight: Approx. 6.47 kg(with single downward gimbal and two TB65 batteries).
Payload And Software
Zenmuse P1
45 MP Full-frame camera. Global Mechanical Shutter Shutter Speed 1/2000 Seconds.
DJI Pilot 2
Ground control
DJI Terra
Modeling and flight mission plan
Workflow
- Data Collection: Plan a 2D, Linear Flight, or Smart Oblique Mission based on the actual landscape situation for regular orthomosaic images or oblique image data collection. Import DSM files for Terrain Follow if necessary.
- Data Processing: Import to DJI Terra to process for DOM, DSM, Point Cloud, and 3D models.
- Data Analysis: Import DJI Terra outputs to preferred third-party software for further analysis.
LiDAR Mapping Solution

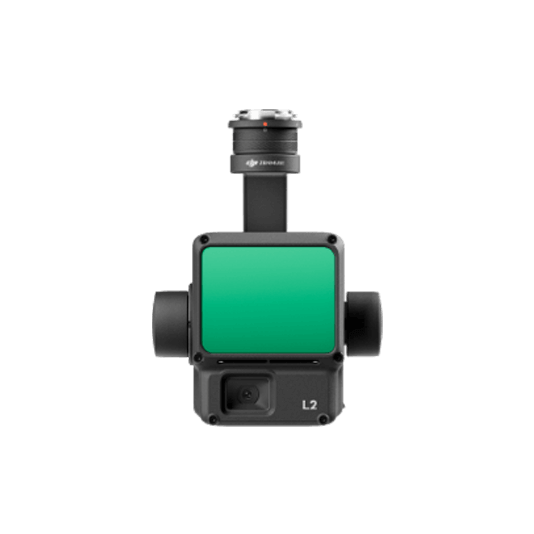

Matrice 350 RTK equipped with the Zenmuse L2 Frame-based LiDAR, can penetrate densely vegetated areas and obtain bare ground data. Increase aerial survey efficiency thanks to its integrated 4/3 CMOS RBG Mapping camera for simultaneous Point Clouds and photogrammetry data collection.
- Field-work efficiency—covers 3 km² per flight, collecting both LiDAR and photogrammetry data.
- Highly integrated solution, reducing on-site time and ensuring data capture quality.
- Reliable and robust multi-purposed drone platform designed to endure harsh environments and conditions.
- Accurate LiDAR Data. Achieve a vertical accuracy of 5 cm or less. -Ideal for densely vegetated areas.
Drone Platform
Matrice 350 RTK
Weight: Approx. 6.47 kg(with single downward gimbal and two TB65 batteries).
Payload And Software
Zenmuse P1
Integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS
DJI Pilot 2
Ground control
DJI Terra
Modeling and flight mission plan
Workflow
- Data Collection: Plan a 2D, Linear Flight, or Smart Oblique Mission based on the actual landscape situation for Point Clouds and image collection. Import DSM files for Terrain Follow if necessary.
- Data Processing: Import to DJI Terra to process for DOM, DSM, Point Cloud, and 3D models.
- Data Analysis: Import DJI Terra outputs to preferred third-party software for further analysis.
